TINI Q-G MINIATURE CONNECTORS
PHONE: 773 792-2700
34
CONNECTORS & RECEPTACLES
?
* Please visit the product pages on our website for the most up-to-date product information
TINI Q-G ? MINIATURE CONNECTORS (continued)

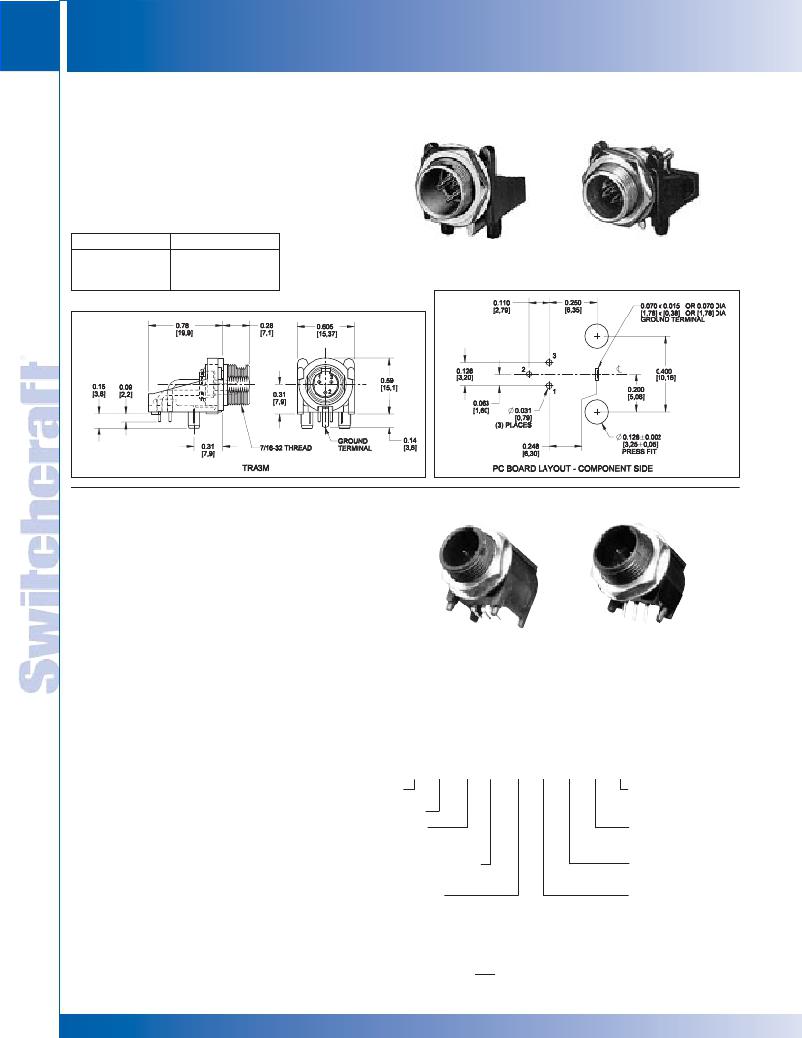

TRA(*)M PC MOUNT MALE RECEPTACLE
The TRA(*)M low profile male receptacles mount in
minimum space from the rear of panel or chassis, and
feature space-saving right-angle construction and PC type
terminals. The TRA3M is a cost-effective choice for audio
equipment, medical instrumentation, computer equipment and
test/measurement applications. Also available with 6 pins.
Part Number
Insert Pins
TRA3M
3
TRA6M
6
TRA6MF*
6
*F designates ferrite shielding.
TRASM*M, TRAPC*M SERIES
Switchcraft introduces an expansion of its popular TQG Series of
connectors.The TRASM*M and TRAPC*M offers low profile, right
angle PC board mount connectors. The TRASM*M versions are
true surface mount connectors, while the TRAPC*M versions are
through-hole PC mount connectors. Both versions are available
in 3-8 pins. All plastic connectors, the TRASM*M and TRAPC*M
series have flats on the top of the connectors to facilitate pick and
place assembly. As an added option, a non-threaded bushing
TRA3M
TRASM3M
TRA6M
TRAPC3MS
version is also available.
FEATURES AND BENEFITS
? Low profile, compact design reduces PC board space
? Mates with TQG female cord plugs
? Rated at 5A for 3-6 pins, 3A for 7 and 8 pin versions
MARKETS
? Wireless microphone systems
? Medical Instrumentation
? Test Instrumentation
ELECTRICAL
Current Rating: 5A for 3-5 pins, 1.5A for 6-8
Contact Resistance: 10 m Ohm max
Insulation Resistance: 100 m Ohm min
Dielectric Withstanding Voltage: 250VAC
Mechanical Life: 2,000 cycles
TINI Q-G ? CONNECTORS ORDERING INFORMATION
T RA M
___ ___ ___ ___ ___ ___ ___ ___ ___
SPECIFICATIONS
MATERIALS
Housing: Thermoplastic
Contacts: Brass, tin-plated
Nut and Washer: Brass, nickel-plated
Tini QG
Right Angle
Termination
PC - Thru Hole
SM - Surface Mount
Contacts Configuration
3-8
Contact Gender
M - Male
Reel Size
15" reel, standard tape
and reel size
Optional Packaging
TR - Tape and Reel
(std packaging - bulk)
Optional Modifier
1 - no thread
Optional Modifier
S-small Profile (available
in configurations 3&4 only)
See next pages for drawings
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
